Over a single USB cable your PC/MAC will utilize existing StarLeaf peripherals:
Any videoconference application such as MS Teams, Zoom, Webex, Google Meet, GoToRoom or WebRTC can be used with your existing StarLeaf hardware. Your PC gets microphone and PTZ room camera. Screen connected to your codec displays remote participants’ video and also your PC content as a local presentation. Speaker plays audio from your PC and remote side. You can control PTZ room camera using your StarLeaf Touch or in a case your codec is not connected to StarLeaf service with provided IR remote.
How it works
User comes with his PC/laptop to a meeting room and plugs one USB cable to his laptop. Display, speakers, camera and microphone originally used for the StarLeaf videoconference become available for his PC/laptop. User can make videocall using any video application on his PC displayed on the large room display.

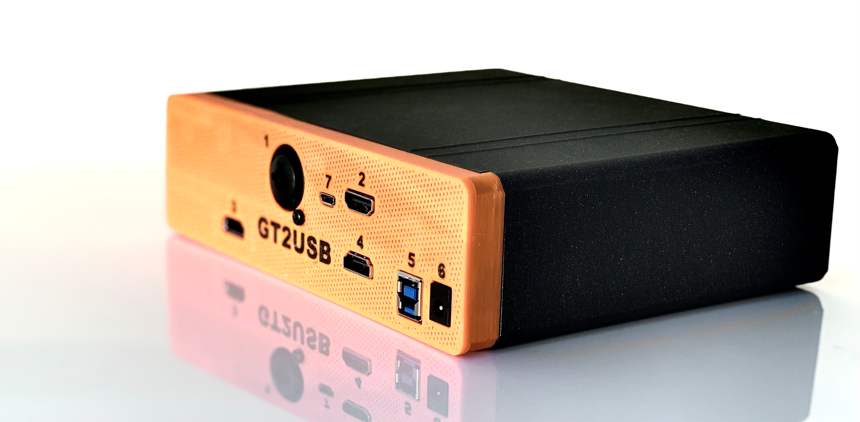

1. HDMI |
Camera Out |
to 2nd Monitor |
2. HDMI |
Camera In |
original cable from StarLeaf Camera Out |
3. XLR F |
Audio In |
from StarLeaf Microphone |
4. HDMI |
Content Out |
to 1st Monitor |
5. USB B 3.0 |
Computer |
to user computer PC/MAC |
6. Power jack |
5V DC |
external 100-240 VAC power adapter |
7. MiniUSB |
5V DC |
external 100-240 VAC power adapter |
Supported |
Peripherals available in BYOD mode |
Host |
Video Inputs |
Audio Inputs |
StarLeaf Group Telepresence 3351 |
Microphone |
USB B 3.0 |
HDMI Camera In |
XLR Phantom power |
Video Outputs |
People video resolution |
Content video resolution |
People video framerate |
Content video |
HDMI Camera Out HDMI Content Out |
720p, 1080p |
720p, 1080p |
30fps |
30fps |
Power adapter |
Environmental Requirements |
Box contents |
Contained Cables |
Options |
AC 100 – 240V, DC 5V/4A |
Operating temperature: 10°C to 30°C Relative humidity: 5% to 80% non-condensing |
GT2USB unit |
HDMI – HDMI 0.5m |
10m USB 3.0 3 Years extended |
Main unit weight |
Main unit dimensions |
Shipping box weight |
Shipping box dimensions |
|
1kg |
W 180mm |
2kg |
W 285mm |
|
