Over a single USB cable your PC or MAC will utilize existing:
Any videoconference application such as MS Teams, Zoom, Google Meet, Skype, Webex, GoToRoom or WebRTC can be used with your existing Avaya Scopia XT4200 / XT4300 / XT5000 / XT7100. Your PC gets powerful audio processing and PTZ room camera from your XT codec. Room monitor connected to your XT codec displays remote participants’ video and your PC content as a local presentation. Speaker plays audio from your PC and remote side.
Acoustic echo cancelation and noise suppression from XT codec provides high quality audio pickup to your PC. Any type of Avaya XT microphone is supported. You can control the PTZ camera and mute microphone using your Avaya XT remote control.
Original H.323/SIP functionality remains unchanged.

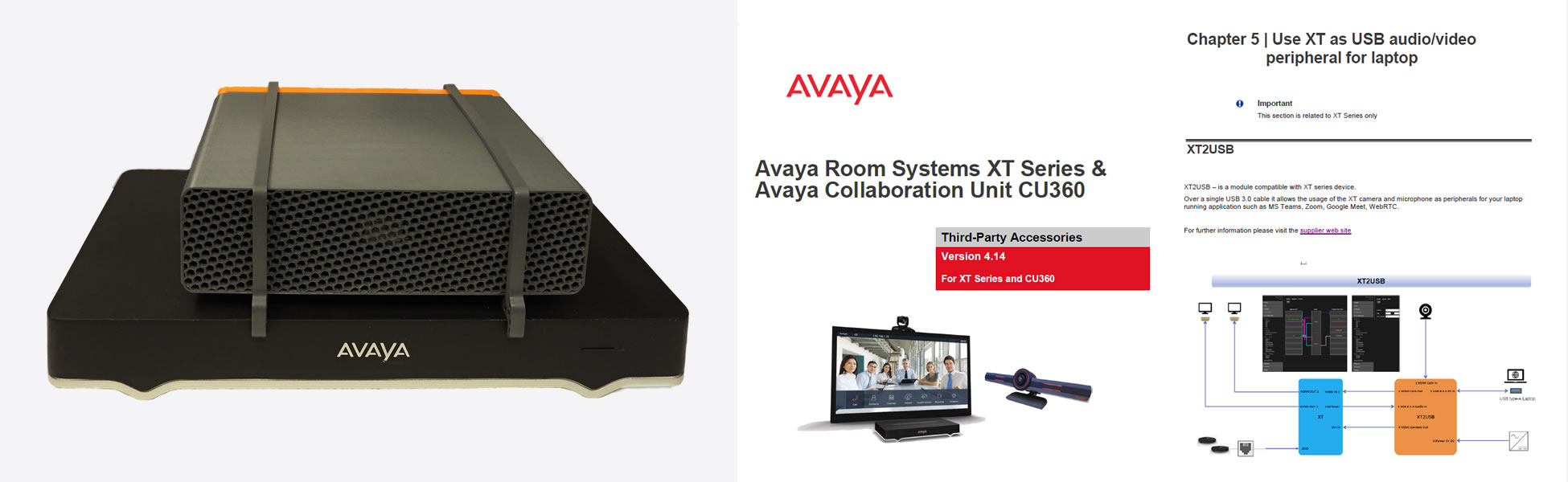

Approved and recommended by Avaya as a third party accessory. Page 54.
To be used with HDMI cameras only. USB cameras are not supported.
User comes with his PC/laptop to a meeting room. He plugs in just one USB cable to his PC. Screen, speakers, camera and microphone originally used for the XT videoconference become available for his PC/laptop. User makes a videocall using any video application of his wish on his PC displayed on the large room screen.
|

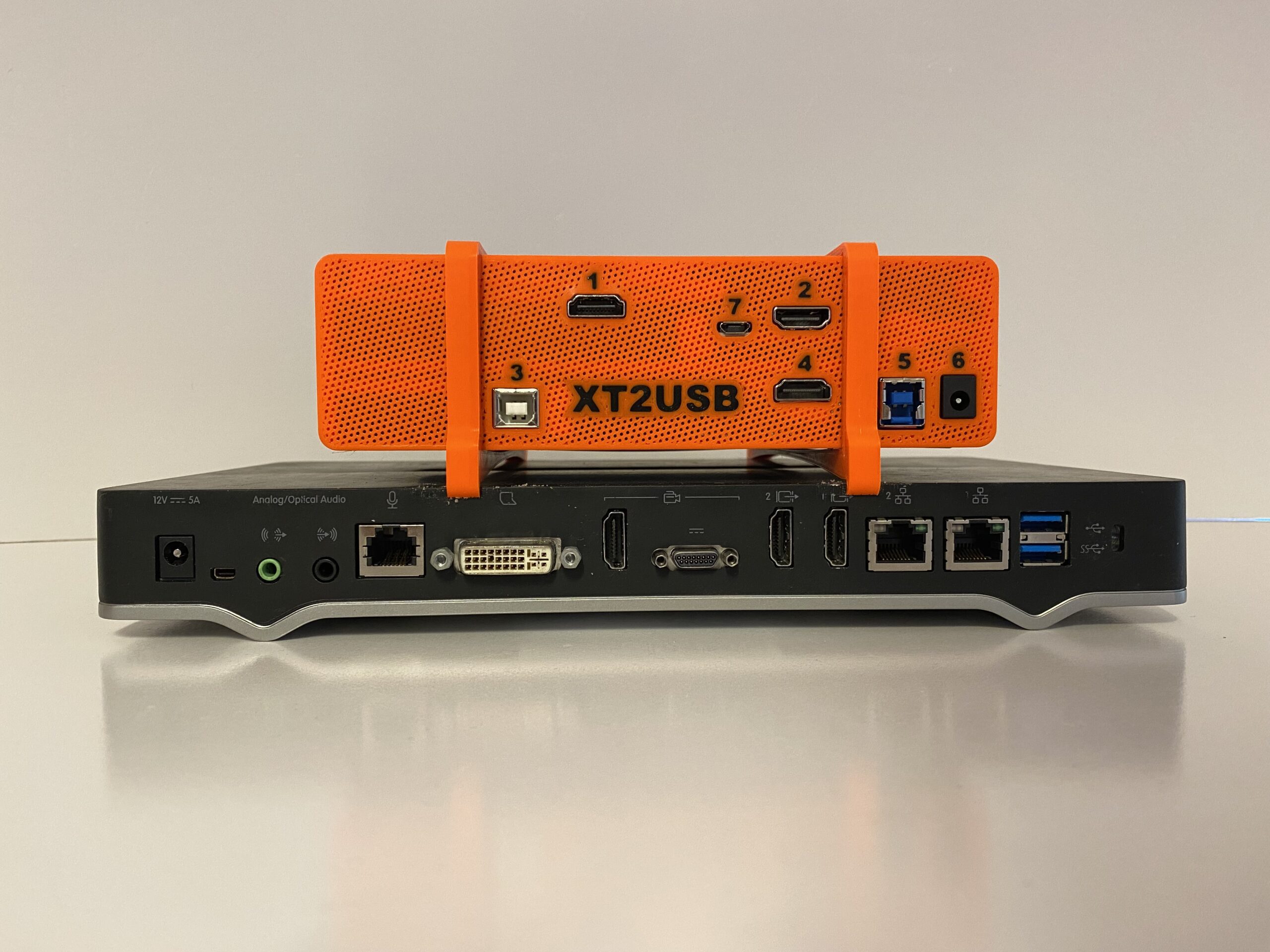

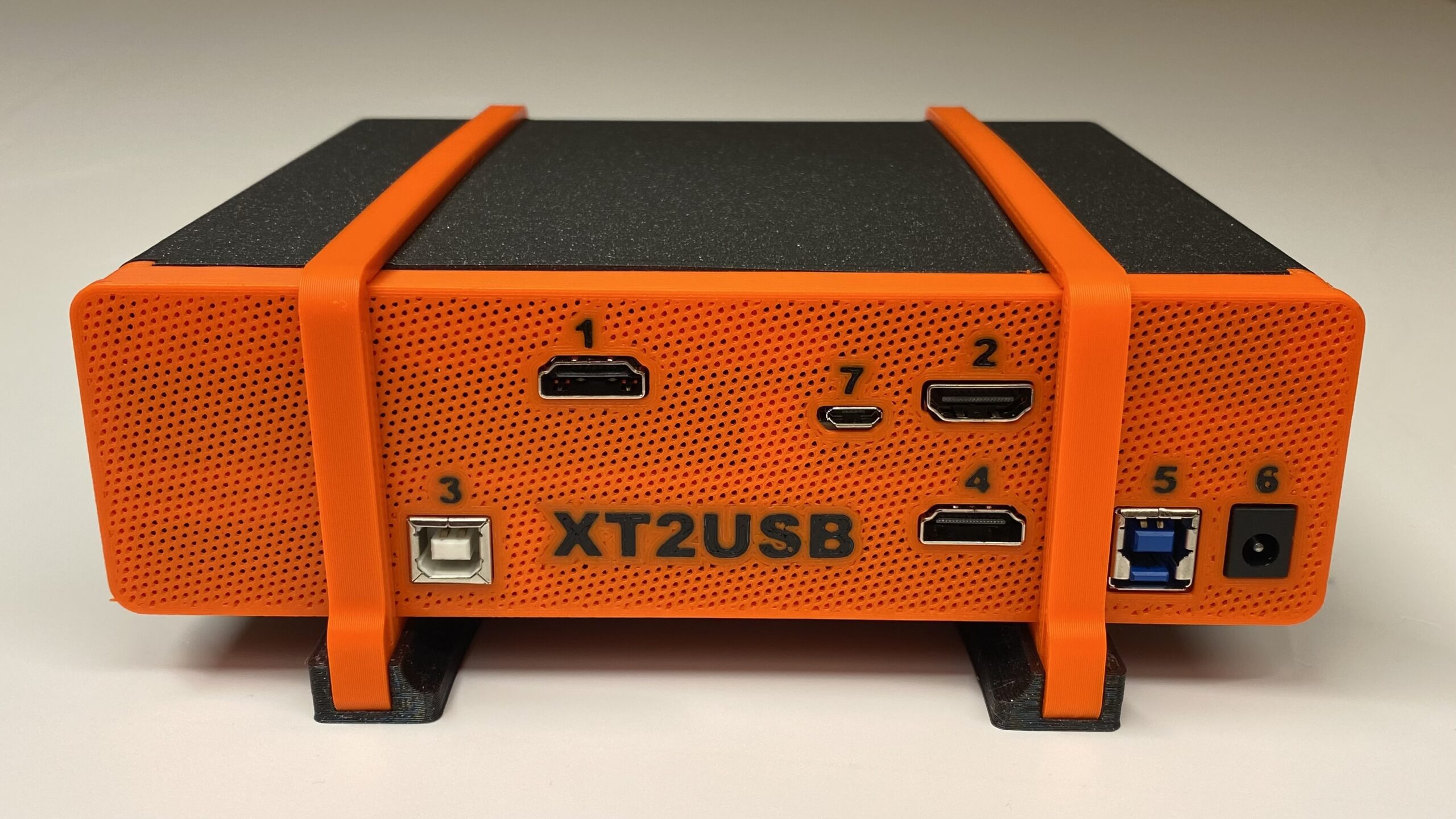

1. HDMI |
Camera Out | to XT codec Camera In |
|
2. HDMI |
Camera In | original cable coming from XT Camera |
|
3. USB B 2.0 |
Audio In | to the lower USB port on XT codec |
|
4. HDMI |
Content Out | to XT codec DVI In |
|
5. USB B 3.0 |
Computer | to user computer |
|
6. Power jack |
5V DC | external 100-240 VAC power supply |
|
7. MiniUSB |
5V DC | to the upper USB port on XT codec |
| Supported videoconference units |
Avaya approved | PC/MAC host connection |
Video Inputs | Audio Inputs |
| Avaya Scopia XT4200 / XT4300 / XT5000 / XT7100 |
Listed in 3rd party Accessories „Use XT as USB audio/video peripheral for laptop” |
USB B 3.0 |
HDMI Camera |
USB B 2.0 |
| Video Outputs | People video resolution | Content video resolution | People video framerate | Content video framerate |
|
HDMI Camera HDMI Content |
720p, 1080p | 720p, 1080p | 30fps | 30fps |
| Power adapter | Environmental Requirements | Box contents | Contained Cables | Options |
|
AC 100 – 240V |
Operating temperature: 10°C to 30°C Relative humidity: 5% to 80% non-condensing |
XT2USB unit |
HDMI – HDMI 0.5m |

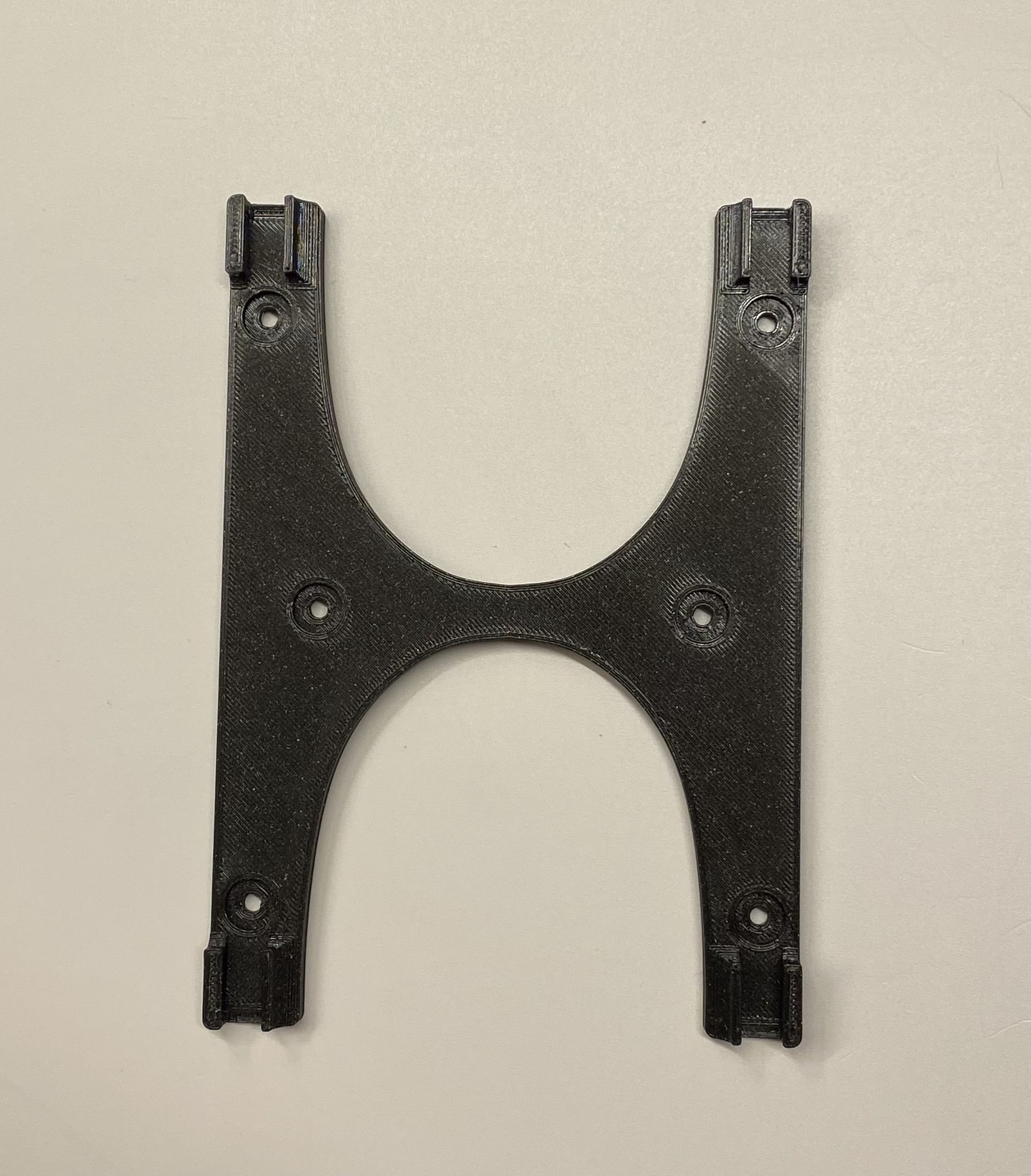

wall holder 10m USB 3.0 3 Years extended |
| Main unit weight | Main unit dimensions | Shipping box weight | Shipping box dimensions | |
| 1kg | W 180mm D 150mm H 50mm |
2kg | W 285mm D 185mm H 125mm |
If your PC is connected to the Internet the drivers are downloaded and installed automatically.
If you need manual installation,
